Description

Product details

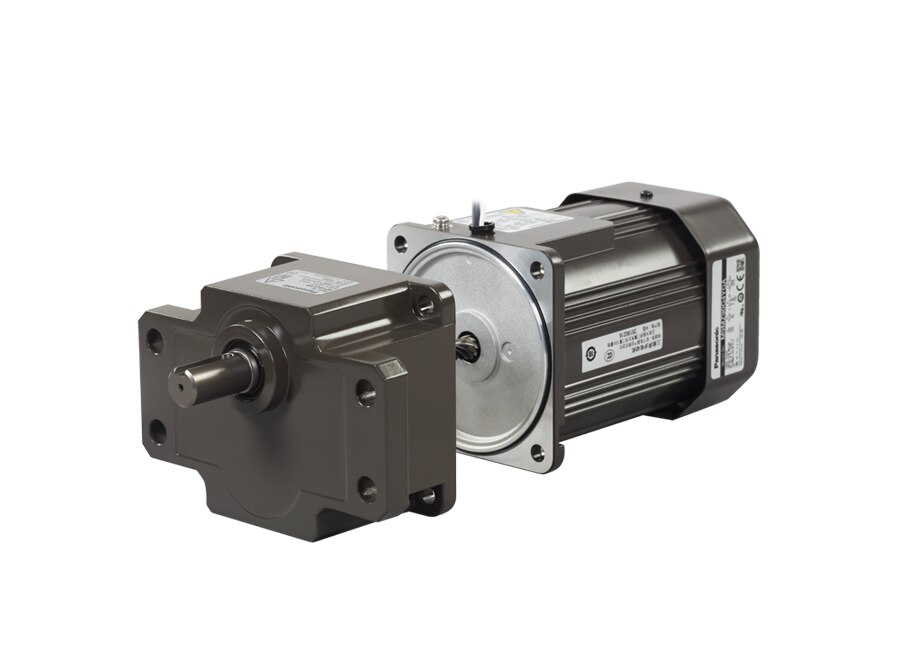

Panasonic 3-Phase motor is an induction motor for 3-phase power. Panasonic 3-Phase motor with specification compliant with overseas standards is of heatproof class 130 (B). Panasonic 3-Phase motor run with Variable frequency drive possible. In Panasonic 3-Phase motor, Variable speed, Braking, Soft start/stop, Normal/Reverse run are possible. Panasonic 3-Phase Motor with two types of motor shafts. the pinion shaft is used to connect a Gearhead (specialized speed-reducing devices) to the standard compact AC motor output shaft, and the round shaft is used when the motor is operated without a Gearhead. Panasonic Gearheads are available with different ratios from 3:1 to 200:1. ● Reduction ratio: 1/3 to 1/200 ● Decimal Gear Head: 1/10 ● Frame size: 80 sq. mm to 90 sq. mm ● Maximum Torque : 19.6 Nm ● Run with Variable frequency drive possible ● Variable speed, Braking, Soft start/stop, Normal/Reverse run possible ● High Power factor & Low noise level ● High torque with low speed ● Built-in Thermal overload protection ● Motor with Temperature of Insulation Class 130 (B) ● Motors with lead wires or terminal box (Sealed connector)
