Description

Product details

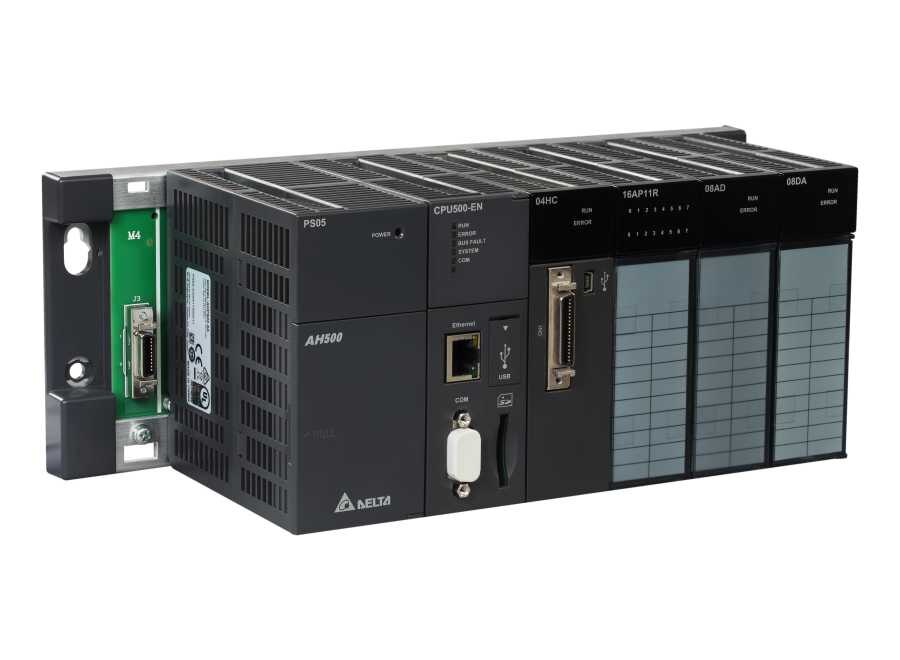

AH Series PLC provides automation solutions for high-level applications. The combination of modularized hardware structure, advanced functions, and highly integrated software provides a system solution for process control applications. In addition to various function blocks (FB), excellent price/performance, and an abundant selection of extension modules, AH Series PLC also provides multi-axis motion control via motion networks, such as EtherCAT, to perform high-speed, high-precision machine control. The exceptional system expandability also greatly reduces the system cost for a broad range of applications. ● Highly integrated software ISPSoft: Graphical Interface with 5 programming languages ● Enhanced flexibility: Max. 100m between 2 local extension racks ● Improved maintainability: Hot-swapping function keeps the system running ● Utilizes 32-bit processor ● Excellent program execution speed: LD instruction execution speed 0.02µs ● Max. I/O points: DIO: Max. 4,352 points AIO: Max. 544 channels RIO: 100,000 points ● Program capacity: Max 384k steps (1.5MB) ● Data register (D+L) 256k words ● CPU built-in with fully isolated RS-232/422/485, Mini USB, Ethernet, full-size standard SD(standard CPU)/SDHC(advanced CPU) card slot ●The abundant selection of DIO modules, AIO modules, temperature control modules, network modules, pulse-train modules, and DMCNET / EtherCAT motion control modules
