Description

Product details

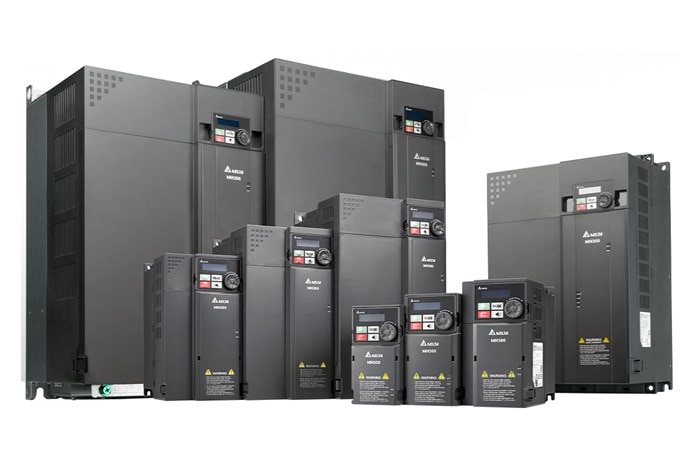

Delta's ME300 series is the new generation compact vector control drive that inherits Delta’s superior drive technology with 60% volume reduction. Various essential functions are built-in as standard, including user defined parameter groups, single and multi-pump functions, a built-in brake chopper, and an EMC filter (C2 Class). It reduces the need for additional expense and provides more installation space in the control cabinet. The ME300 also supports both induction and interior/surface permanent motors, providing more efficiency and flexibility. The STO function ensures smooth operation while protecting facilities from damage, and the new screw-less wiring design of terminal blocks offers a simplified wiring process for quick installation. User-friendly operation, ultra-compact size, quick installation, and flexible, durable design provide the user with a highly efficient and stable system. The ME300 is your key to increased market competitiveness that leads to your success. ● Supports IM / IPM /SPM motors and VF / SVC control ● Dual rating design:-Normal Duty (ND), 120% for 60 seconds or 150% for 3 seconds-Heavy Duty (HD), 150% for 60 seconds or 200% for 3 seconds ● Up to 200% rated starting torque at 0.5 Hz ● 2 sets of motor parameters for multi-motor control ● Supports high-speed pulse and PWM signal input ● Built-in single /multi-pump function ● Built-in braking choppers for the entire series ● Optional EMC filter for 1-phase 230V(C2), 3-phase 460V(C3) models ● Optional Safe Torque Off (SIL2/PLd) model ● 100% PCB coating for circuit(IEC 60721-3-3 class 3C3) for harsh environment Power Range 230V/1-Phase : 0.125HP ~ 3HP 460V/3-Phase : 0.5HP ~ 10HP Integer 50
