Description
Product details

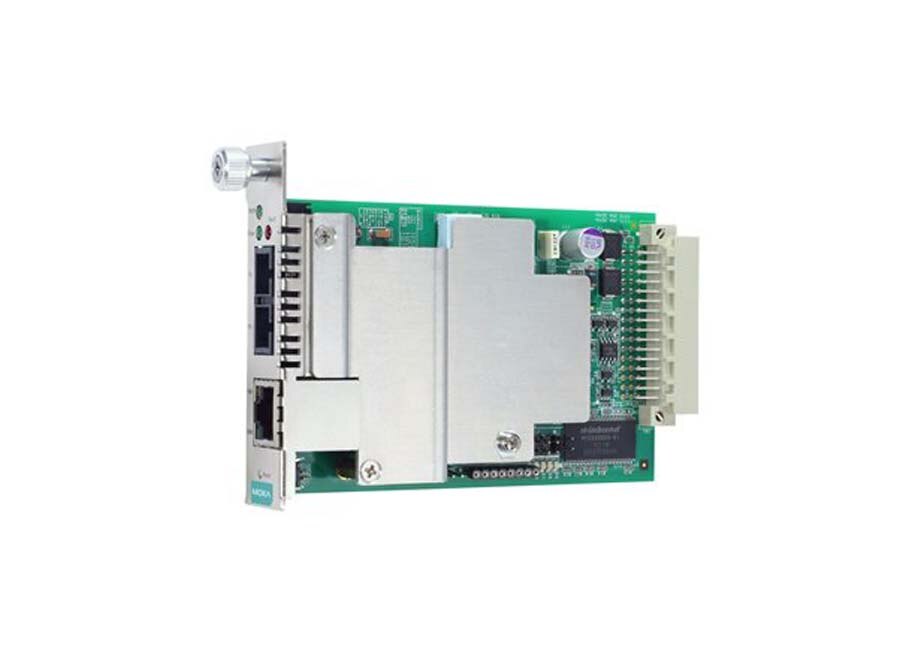

The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack Systemβ’. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack Systemβ’ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost β LFP (Link Fault Pass-Through) and FEF (Far End Fault) β Supports store-and-forward mode and pass-through mode β Auto-negotiation β Supports IEEE 802.3AH OAM protocol β Plug and play β Hot-swappable β IP-based remote management β Supports WDM type modules Product category Media Converter sub-category Ethernet to Fiber Converter Partner name Moxa Series name CSM-400 Series Attributes Ethernet Port 1 Fiber Port 1 Media Converters Type Ethernet-to-Fiber Ethernet Interface 1 10/100BaseT(X) Ports (RJ45 connector) Fiber Port 1 100BaseFX Ports (multi-mode ST connector) PoE Ports β Combo Ports β Input Voltage 12 VDC IP β Mounting β Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) Weight 115 g (0.25 lb) Housing β Operating Temperature -20 to 55Β°C (-4 to 131Β°F) Warranty Period 5 years
