Description

Product details

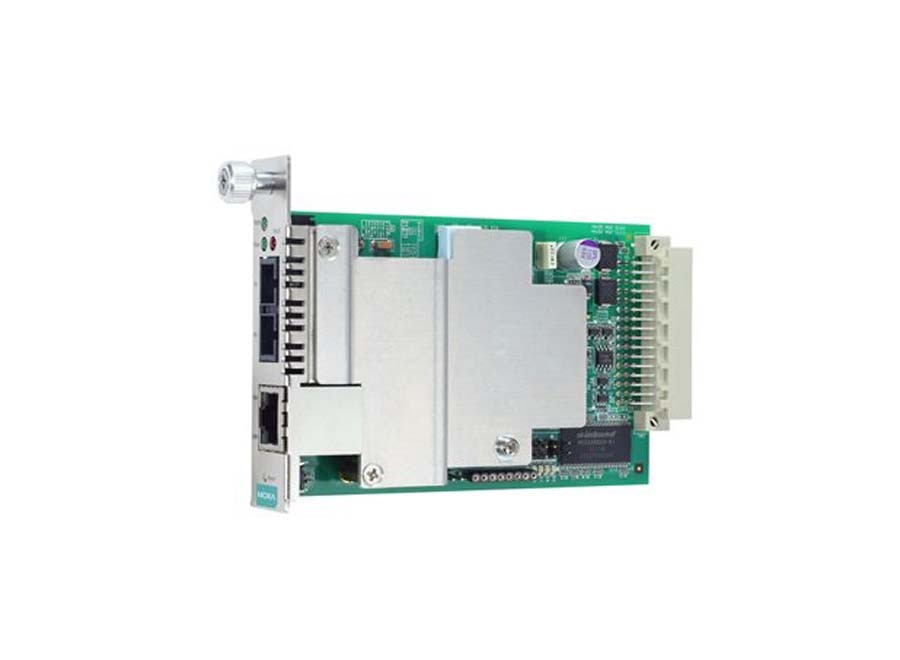

● LFP (Link Fault Pass-Through) and FEF (Far End Fault) ● Supports store-and-forward mode and pass-through mode ● Auto-negotiation ● Supports IEEE 802.3AH OAM protocol ● Plug and play ● Hot-swappable ● IP-based remote management ● Supports WDM type modules Product category Media Converter sub-category Ethernet to Fiber Converter Partner name Moxa Series name CSM-400 Series Attributes Ethernet Port 1 Fiber Port 1 Media Converters Type Ethernet-to-Fiber Ethernet Interface 1 10/100BaseT(X) Ports (RJ45 connector) Fiber Port 1 100BaseFX Ports, WDM-A Single-Mode SC Connector PoE Ports – Combo Ports – Input Voltage 12 VDC IP – Mounting – Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in) Weight 125 g (0.28 lb) Housing – Operating Temperature -20 to 55°C (-4 to 131°F) Warranty Period 5 years
