Description

Product details

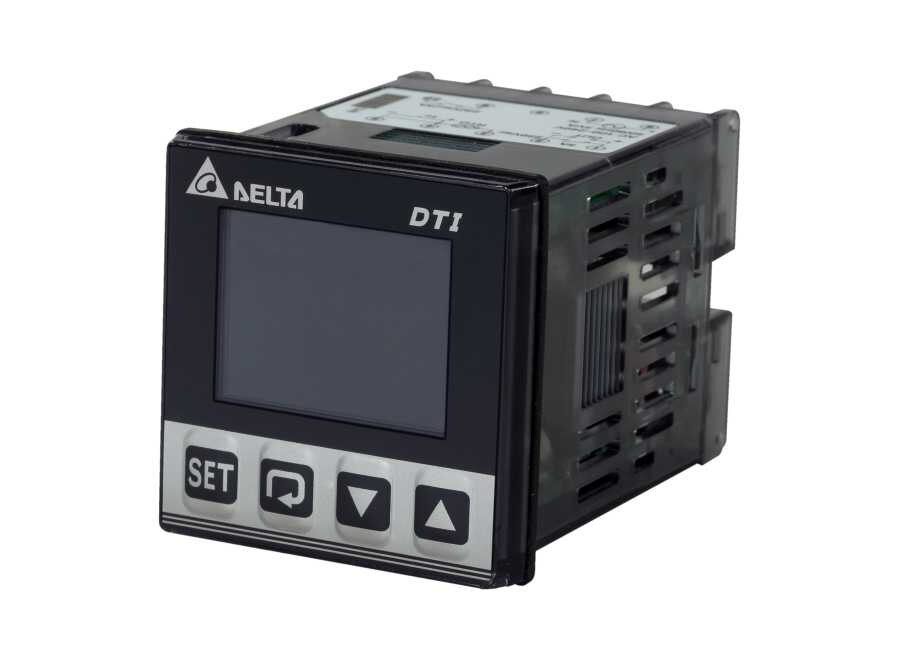

DTI series is an LCD Type Temperature controller. This series falls under an economic series that is suited for single output control applications. It also supports ON/OFF, PID, and Manual modes. Its depth is 60mm which will save space in mounting. 48 x 48 & 96 x 96 sizes are available. Supports only temperature input and Relay or SSR outputs. ● 100 ~ 240 Vac,±25% ,Max.5VA ● PID / On-Off/ manual control modes ● Auto-tuning PID parameters ● Various thermocouple (B, E, J, K, L, N, R, S, T, U, TXK) and platinum RTD (PT100, JPT100, Cu50 & Ni120) can be set by parameters ● Supports Voltage Pulse Output and Relay Output as a control output ● Built-in single relay alarm OUTPUT with 9 control modes ● Sampling period: 100 ms ● Celsius or Fahrenheit temperature display ● Panel size: 4848 & 9696 ● Accuracy: LCD display with ±0.5% of the measuring range SIZE 48 X 48 mm 96 x 96mm Integer 50
