Description

Product details

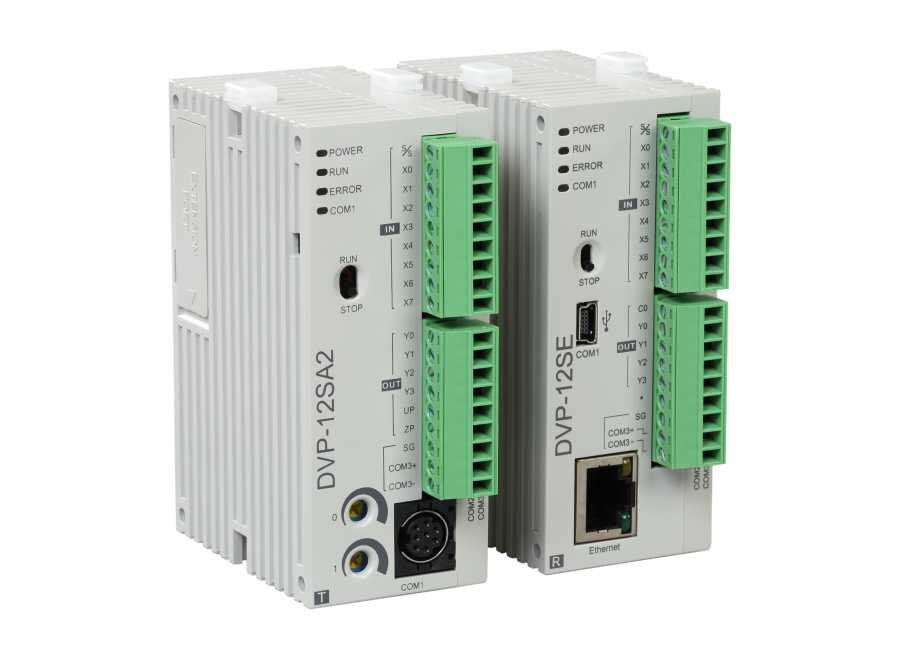

The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules. ● MPU points: 12 (8DI + 4DO) ● Max. I/O points: 492 (12 + 480) ● Program capacity: 16k steps ● COM port: Built-in RS-232 & RS-485*2 ports, compatible with Modbus ASCII/RTU protocol. ● Can be master or slave. ● High-Speed Pulse Output : Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output. ● Extendable to Max. 8 Modules : DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules, and single-axis motion control functions. ● Built-in High-Speed Counters : 1-Phase – 5 points (100KHz Bandwidth) & 2 Phase – 3 points (50KHz Bandwidth)
