Description

Product details

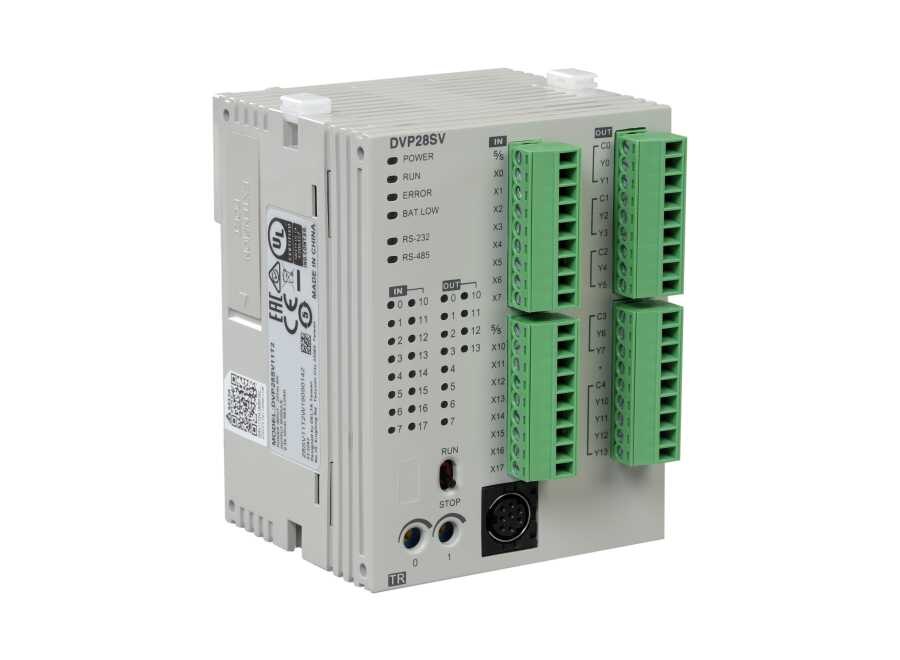

The new generation DVP-SV2 PLC is the high-end model of the Delta DVP-S series. It provides larger program capacities and data registers for more demanding and complex applications. ● High-speed pulse output: 4 sets of 200kHz pulse output ● Supports max. 4 hardware 200kHz high-speed counters ● Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning ● Offers linear / arc interpolation motion control ● Provides up to 16 external interrupt pointers ● Complete Program Protection ● Auto backup function to prevent losing programs and data even when the battery runs out ● The second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged ● Up to 4-level password protection protects your source programs and intellectual property ● Supports DVP-S series left-side and right-side modules ● Add new ETHRW instruction for Ethernet communication ● Built-in high speed counter : 1-phase – 4 points 200KHz & 2-phase -4 points 200KHz
