Description

Product details

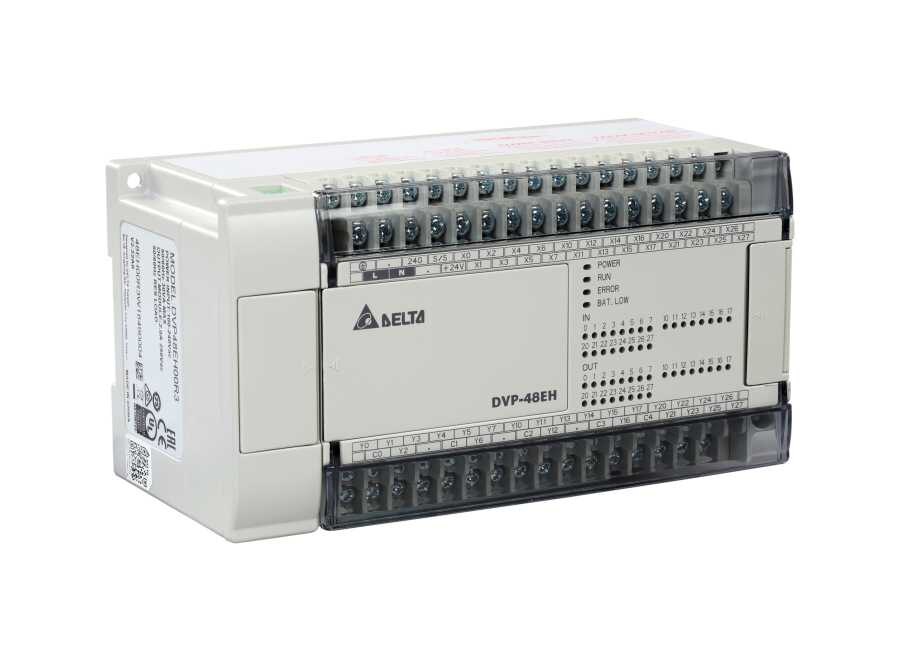

The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series. It provides larger program capacity and data registers for more demanding and complex applications. ● Excellent Motion Control High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3) Supports max. 4 hardware 200kHz high-speed counters Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning control such as labeling machines, packaging machines, and printing machines Offers linear / arc interpolation motion control Provides up to 16 external interrupt pointers ● Complete Program Protection Auto backup function to prevent losing programs and data even when the battery runs out The second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged Up to 4-level password protection protects your source programs and intellectual property ● CPU + ASIC dual processors support floating point operations. ● The max. execution speed of basic instructions is able to reach 0.24μs. Flexible Function Extension Modules & Cards ● The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port, and Ethernet communication card are available. ● HSC : 1-phase – 4 points – 200KHz & 2-phas – 4 points – 200KHz
