Description
Product details

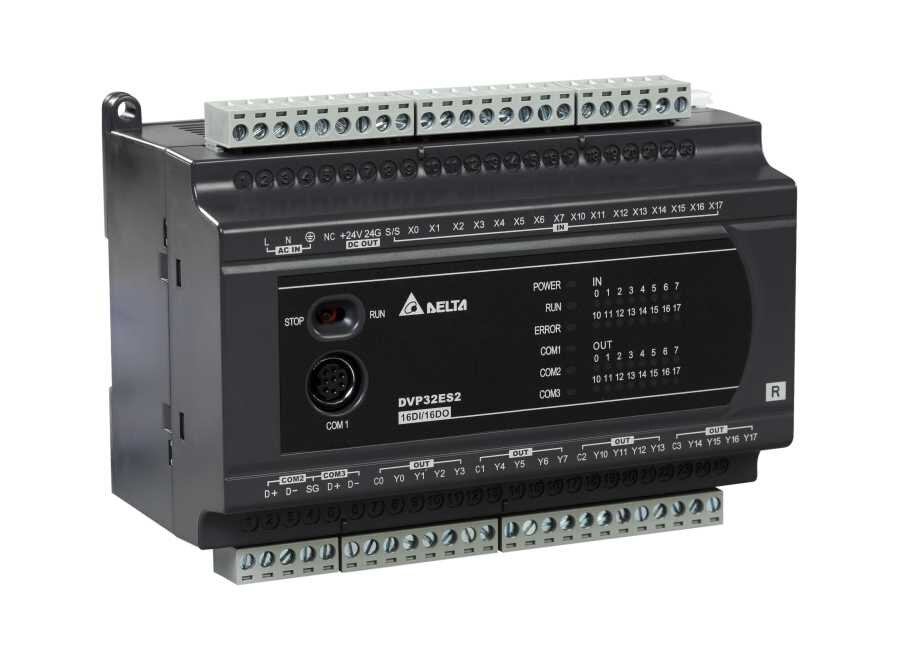

ES2 series is a small PLC for basic sequential control. It is economical, highly efficient, and functional. β MPU points: 16 / 20 / 24 / 32 / 40 / 60 β Program capacity: 16k steps β Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave) β Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points β DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution. β Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes β New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration β Application in the emerging industry: Exclusive instructions and function blocks designed for PV solar tracker β Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta@@s AC motor drives β Password protection: Password for the subroutine, user ID, restriction on trial times β Highly efficient instruction efficient instruction execution
