Description

Product details

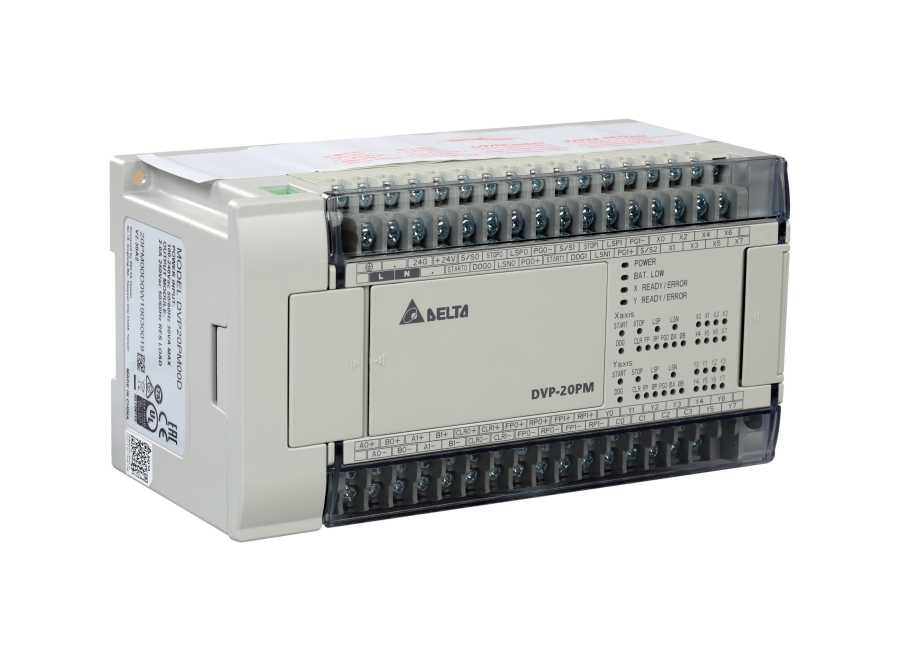

The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications. It is a Pulse type of Motion PLC that supports 500KHz PTO and E-CAM. It supports G-Codes and M-codes and also supports MPG function. Supports various kinds of FB related to CAMing applications ● Max. I/O points: 512 ● Program capacity: 64K Steps ● Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol. ● Data register: 10,000 words (latched) ● 500KHz high-speed pulse output: ● Built-in 2 groups of A/B phase differential signal output ● X-axis pulse output: (FP0+, FP0-), (RP0+, RP0-) ● Y-axis pulse output: (FP1+, FP1-), (RP1+, RP1-) ● Supports Manual Pulse Generator (MPG) and multi-point external signal inputs ● Supports E-CAM function ● Supports G-Codes and M-Codes ● Supports Acyclic / Cyclic / Rotary Cutter Functional Block
