Description

Product details

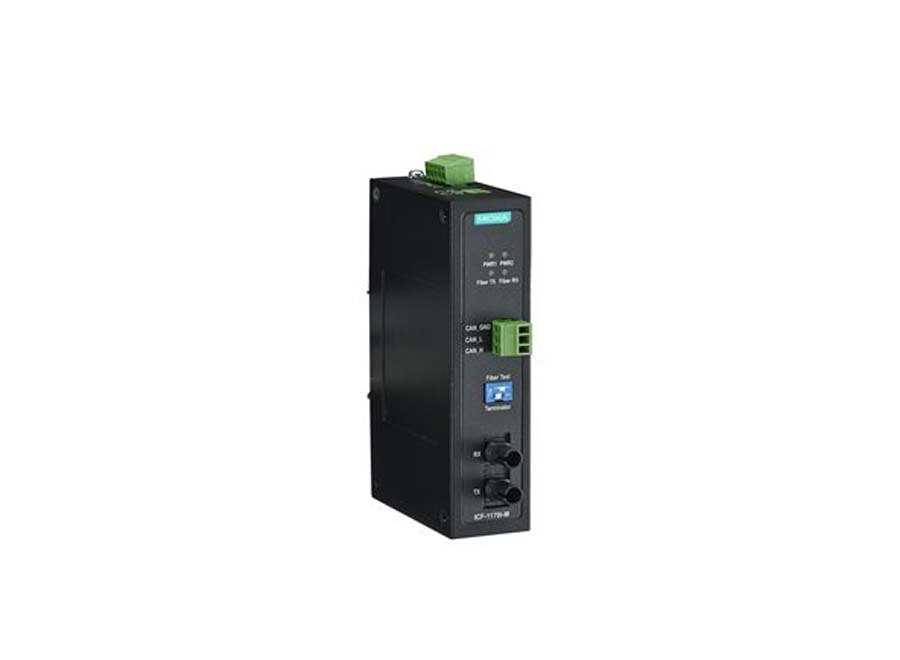

● Transmits data up to 2 km over optical fiber ● Converts CAN signals to fiber and fiber to CAN signals ● Baudrate up to 1 Mbps ● Dual power inputs for redundancy ● DIP switch for 120 ohm terminal resistance ● DIP switch for fiber test mode ● LEDs for Fiber Tx, Fiber Rx, Power 1, Power 2 ● Wide-temperature model available for -40 to 85°C environments ● Fully compatible with the ISO 11898 standard Product category Media Converter sub-category Fieldbus-to-Fiber Converters Partner name Moxa Series name ICF-1170I Series Attributes Conversion Type CAN to Fiber Fiber Port 1 Media Converters Type Fieldbus-to-Fiber Converters Ethernet Interface – Fiber Port 100BaseFX ports (multi-mode ST connector) PoE Ports – Combo Ports – Input Voltage 12 to 48 VDC IP IP30 Mounting DIN-rail mounting Dimensions 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) Weight 178 g (0.39 lb) Housing Metal Operating Temperature -40 to 85°C (-40 to 185°F) Warranty Period 5 years
