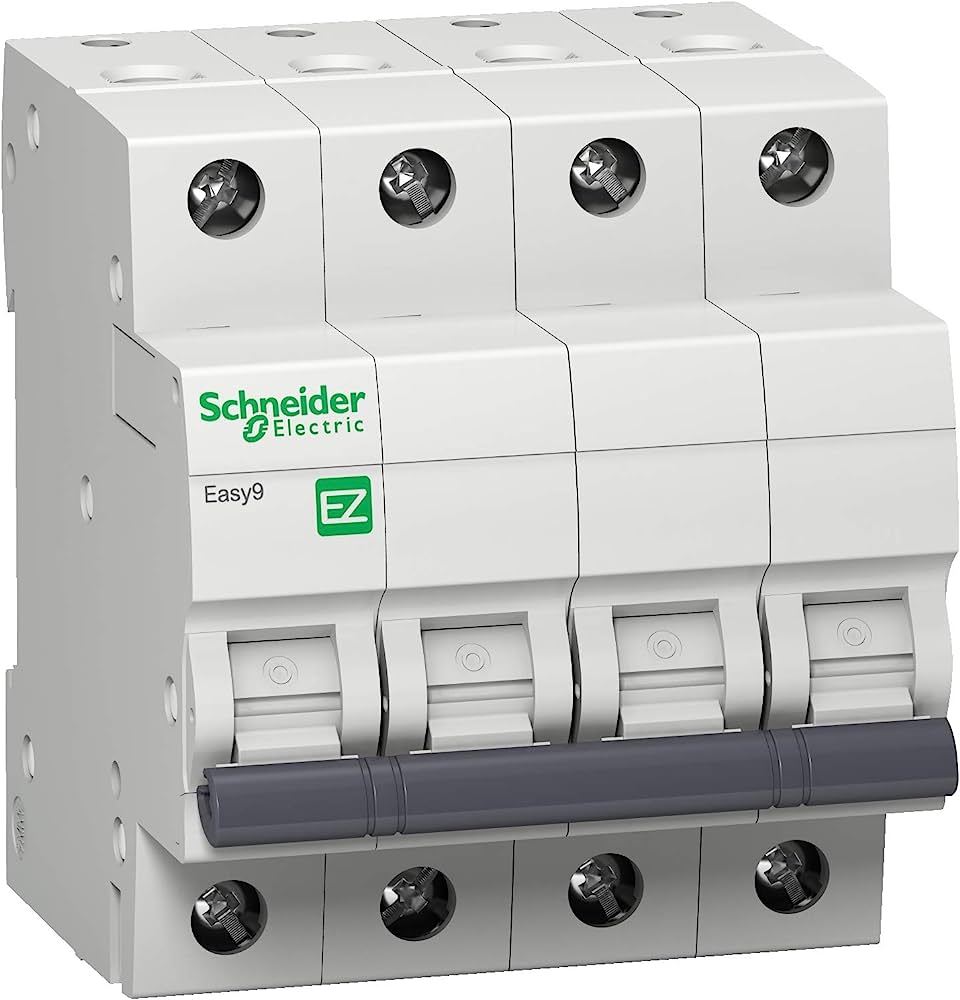

Schneider Electric is a well-known manufacturer of electrical products, including Miniature Circuit Breakers (MCBs). MCBs are protective devices used to automatically disconnect electrical circuits in the event of an overcurrent or short circuit. Here are some key features and information about Schneider MCBs: Acti9 Series: Schneider Electric offers MCBs under their Acti9 series. These MCBs are designed to provide reliable protection and control for electrical installations. Current Ratings: Schneider MCBs are available in various current ratings to suit different applications. Common current ratings include 6A, 10A, 16A, 20A, 32A, and 40A, among others. It's important to select an MCB with the appropriate current rating based on the electrical load requirements. Breaking Capacity: The breaking capacity of an MCB refers to its ability to interrupt the current flow during a fault condition. Schneider MCBs have different breaking capacities, typically ranging from 4.5kA to 10kA. It's essential to choose an MCB with a breaking capacity suitable for the fault level of the electrical installation. Number of Poles: Schneider MCBs are available in different pole configurations, such as single-pole (1P), double-pole (2P), and triple-pole (3P). The number of poles determines the number of simultaneous circuit interruptions the MCB can provide. Single-pole MCBs are commonly used for single-phase circuits, while double-pole and triple-pole MCBs are used for three-phase circuits. Trip Characteristics: MCBs can have different trip characteristics to suit different applications. Schneider MCBs may have trip characteristics such as B-curve (for general-purpose applications), C-curve (for motor control applications), or D-curve (for high inrush current applications). Connection Options: Schneider MCBs come with various connection options, including screw terminals or plug-in terminals. The choice of connection type depends on the specific application and installation requirements. Overload and Short Circuit Protection: Schneider MCBs provide protection against both overcurrents (caused by overload conditions) and short circuits. They automatically trip and disconnect the circuit when the current exceeds the rated capacity of the MCB. Quality and Safety: Schneider Electric is known for its high-quality electrical products, and their MCBs are designed to meet international standards for safety and performance. When selecting a Schneider MCB, it's important to consider factors such as the current rating, breaking capacity, number of poles, trip characteristics, and specific application requirements. Refer to the product specifications, technical datasheets, and guidelines provided by Schneider Electric for detailed information and proper selection of the appropriate MCB for your electrical installation.
