Description
Product details

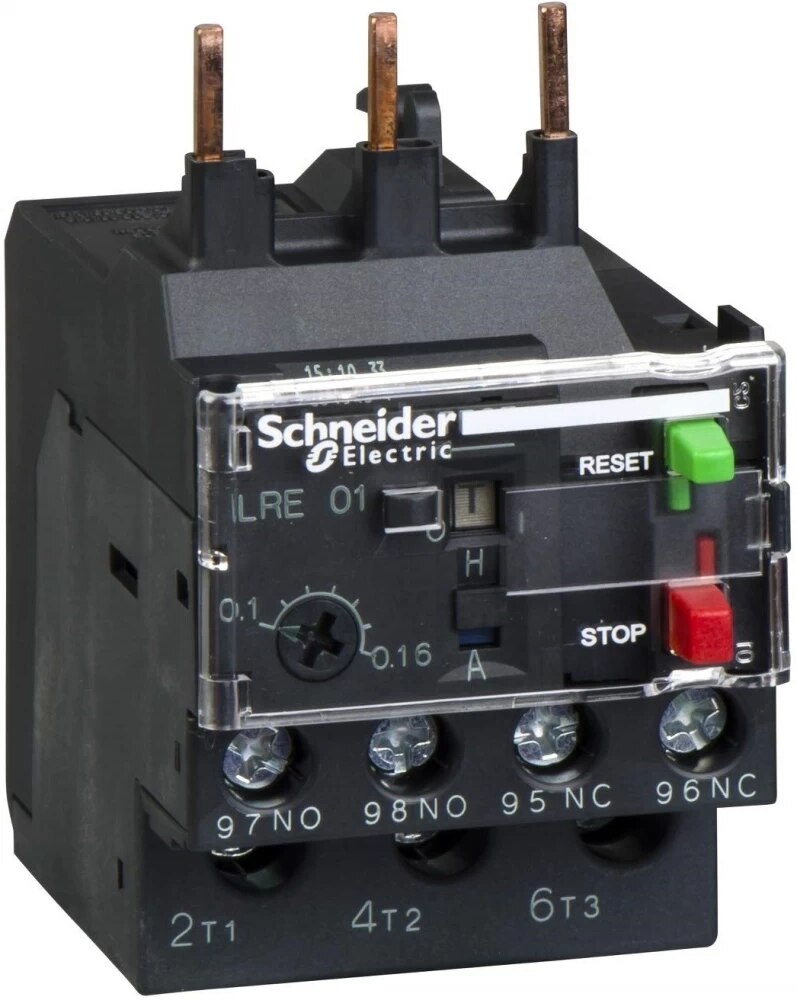

Schneider Electric offers Thermal Overload Relays as part of their motor protection devices. A Thermal Overload Relay is an electrical device used to protect motors from overheating due to excessive current flow. Here are some key features and information about Schneider Thermal Overload Relays: TeSys Series: Schneider Electric's Thermal Overload Relays are typically part of their TeSys series of motor control and protection products. TeSys relays are designed to provide reliable motor protection and control. Motor Protection: Thermal Overload Relays are primarily used for motor protection. They monitor the motor's current and trip the circuit if the current exceeds the set threshold, indicating an overload condition. Thermal Sensing: Schneider Thermal Overload Relays use bi-metallic elements or temperature sensors to measure the motor's heat generated by the current flow. As the temperature increases, the relay responds by tripping the circuit to protect the motor from damage. Adjustable Trip Current: Schneider Thermal Overload Relays typically allow for adjusting the trip current or overload setting. This adjustment ensures that the relay responds appropriately to the motor's specific current requirements and protects against both overload and underload conditions. Reset Mechanism: After the relay trips due to an overload condition, it typically includes a reset mechanism to restore power to the motor once the condition has been resolved. Depending on the specific model, the reset may be manual or automatic. Trip Indication: Schneider Thermal Overload Relays often feature trip indication mechanisms such as LED indicators or mechanical flags to provide visual confirmation of the relay's status. Mounting Options: Thermal Overload Relays are designed for easy integration into motor control panels. Schneider relays offer various mounting options, including direct mounting on contactors or mounting on DIN rails. Coordination with Contactors: Schneider Thermal Overload Relays are compatible with Schneider contactors and can be used in combination with them for motor control and protection. Compliance and Standards: Schneider Electric manufactures Thermal Overload Relays that meet international safety standards, ensuring reliable and safe operation. When selecting a Schneider Thermal Overload Relay, consider factors such as the motor's current rating, trip current adjustment range, coordination with contactors, and compatibility with the motor control system. Refer to the product specifications, technical datasheets, and guidelines provided by Schneider Electric for detailed information and proper selection of the appropriate Thermal Overload Relay for your motor protection needs.
